progeCAD 2021 Professional Update 21.0.6.11/12

Objavljeno je novo ažuriranje za progeCAD 2021 Professional, koje nosi oznaku 21.0.6.11/12.

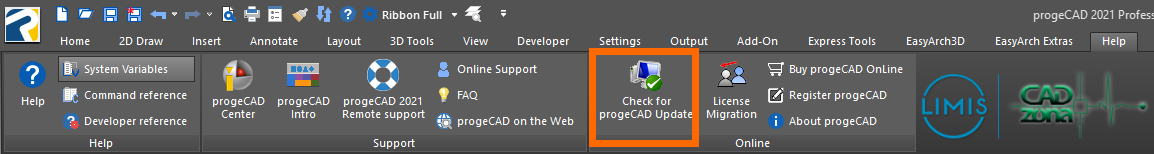

Ukoliko niste sigurni da li je progeCAD ažuriran, pokrenite proveru ažuriranja preko komande Help/Check for progeCAD Update:

ribbon

Ukoliko se progeCAD nije ažurirao, najnovije ažuriranje se može preuzeti sa stranice: https://www.progesoft.com/support/progecad-updates.

Ispravke u ovom ažuriranju su:

  • Fixed the height of the Find&Replace dialog when the TOP of the program is not aligned with the TOP of the screen
  • Fixed REFCLOSE in case of editing XREF using REFEDIT
  • Fixed display of point style in SETTINGS dialog
  • Fixed delete of unused files in temp and in backup folder
  • Replaced _CUSTOMIZE with _CUI. Changed command associated with QCUI alias
  • Fixed set of active view from VIEW dialog, now it doesn't need a double "Set current" to activate it
  • Fixed PLAN command to disable front and back clipping plane
  • Fixed open time and anomal memory usage opening drawing with clipped blocks
  • Fixed transparency of polygon selection window and circle selection window
  • Fixed z displacement using associative array
  • Fixed STRETCH command in a drawing with bad mechanical entities
  • Fixed crash using color combobox in property palette
  • Added check to avoid crash in FILLET command
  • Updated library to import various file formats
  • Fixed PYRAMID command in NWUCS
  • Fixed set of 3D SOLID color also when a subentity has RGB color
  • Fixed crash opening a drawing with FIELD in attributes
  • Fixed set of color when ACIS subentity already has a RGB color
  • Activated Dynamic UCS for PYRAMID command
  • Fixed background color of PDF export
  • Fixed RGB color of acis 3d object
  • Updated solidworks import library
  • Added check to avoid crash opening a drawing from start page using mouse wheel
  • Fixed crash in 3dConnexion module
  • Fixed insertion point and scale of image inserted using positioning file
  • Fixed crash on selection
  • Fixed crash clicking on start page during load of drawing
  • Implemented BLOCKCACHELIMIT variable
  • Fixed EasyArch edit scale dialog
  • Changed value of SAVETHUMBNAIL variable to fix crash saving drawing and enlarged to 512 pixels generated thumbnail size
  • Fixed priority of commands in command list
  • Fixed crash copying or moving an entity with wrong dimension association
  • Partially fixed problem trimming spline entity with another spline
  • Fixed open of drawing from start page: if drawing has missing xref and user choose to update path of missing xref a regen fails and create an unresponsive state
  • Fixed command list typing on command line, Fixed localization of alias command list
  • Fixed double click action on entities placed on locked layer
  • Disabled ARRAYASSOCIATIVITY with 3DARRAY command
  • Fixed crash selecting array entities
  • Changed backup folder to "progeCAD backup drawings". Implemented clear of old backup files using CHECKTEMPFOLDER variable
  • Added BACKUPOPEN variable to backup drawings in temp folder before open
  • Improved PDF2CAD command: now it will check input files list before starting the conversion thread
  • Fixed freeze during REGEN on very high zoom in a drawing with complex linetype
  • Improved Quick Properties Configuration dialog: - Fixed the way string resources are loaded
  • Fixed disappear of some entity after REFCLOSE
  • Improved QRCODE dialog: - added "Help" button - handled click on "Help" button Defined help context for QRCODE dialog
  • Fixed "Invalid input" error message using ENTER changing scale or angle in HATCH dialog
  • Implemented automatic search of block selected for REFEDIT also on double click
  • Fixed selection of right subblock in refedit tree
  • Fixed 3DCONVERT not loading the correct string resource for an error message
  • Fixed Selection Palette page creating a wrong filter for Layer Name, Entity Color and Linetype properties. Now it will use the localized name of those properties to create objects filter
  • Removed isolines with HIDDEN mode to improve speed of regeneration
  • Fixed crash in PDF2CAD
  • Added Modeless Progress Indicator loading a drawing
  • Fixed osnap on zoom window according to OSNAPCOORD
  • Fixed creation of corrupted HATCH using PREVIEW during HATCHEDIT
  • .NET API: Changed open file function to get failure from .NET procedure
  • Improved Main Options dialog: now *Scale* options means "millimeters per DXF unit" Improved Advanced Options dialog: restored *Scale Text* option and moved it to Scaling Options group
  • Avoided explosion of solid hatches in 2d solid entities using EXPLODE command
  • Improved performance of EXPLODE command
  • Fixed selection of dashed entities in empty part of linetype changelog : Fixed selection and ESNAP of dashed entities
  • Fixed print of Footer or Header when drawing name that cointains ','
  • Fixed TRIM with rotate view
  • Implemented selection of last opened file in OPEN dialog
  • Disabled SELECTIONCYCLING within LISP or SCRIPT commands
  • Fixed Replace in FIND dialog with MLeader using Block as content type
  • Fixed FIND command with MLEADER using BLOCK with ATTRIBUTES
  • Fixed stack corruption problem opening file that uses vertical true type fonts (with '@')
  • Fixed hang using print preview with PDF printer and custom paper size without customize the size
  • Fixed save and get of print transparency from layout
  • Fixed print PDF with transparency (or hidden, shaded) using our PDF printer, added PRINTTILEMODE variable (ON is 2020 mode, OFF is 2021)
  • Fixed Revit underlay scale after reopen
  • Fixed speed of selection of 2d Polylines with many vertexes (+10k)
  • Fixed FLATTEN command with 3d Solids objects
  • Added message for unsupported Revit file version
  • Fixed APPLOAD command to load lisp that contains COMMAND
  • Fixed purge of Dynamic blocks to avoid delete of referenced dynamic blocks
  • Implemented print of TIFF file using our JPG printer
  • Fixed selection speed in drawing with too complex hatch, ignored (not regenerated) hatches with more than 5000 loops
  • Implemented sysvar fields in FIELD command
  • Reduced size of objects pasted in Word-Excel, Added EMFFACTOR and WMFFACTOR to change size factor of EMF and WMF created during COPYCLIP
  • Improved PDF2CAD command: now it will display only one message if some of the input files were skipped during Batch conversion
  • Improved PDF2CAD: handled skipped files Improved "Single File" mode tab: now it will display an error if invalid PDF file is selected Code Cleanup
  • Disabled thumbnail generation during autosave to increase speed of autosave
  • Fixed OFFSET with lines standing on different Z levels
  • Fixed the initial height of the DWG Preview in Open File dialog
  • Restored vertex grips of non associative hatch created selecting objects
  • Property palette :Fixed change of number of items and angle between items of polar array if angle is less than 360°
  • Fixed print of images with a page size larger than A3
  • Fixed lag after copy of block
  • Removed "last access" from open/save dialog
  • Fixed a bug in DATAEXTRACTION dialog when user is unable to move from step "Data Source" to step "Select Objects"
  • Fixed default option not being recognized by PCAD in a few prompts of the _3DARRAY command
  • Property paleete: Fixed change of total angle of polar array if angle is less than 360°
  • Fixed speed of COPY of some specific blocks in a big drawing
  • Fixed the command bar position in a Multi-Monitor context. Now it appears on the correct monitor at startup time
  • Fixed temporary OSNAP in ZOOM window command with OSNAPCOORD = 2
  • Fixed zoom and pan with ZOOMDETAIL = -1
  • Fixed update of Quick property palette changing color with ribbon or toolbar combobox
  • Fixed insertion of blocks from tool palette: layer names and other styles coming from inserted blocks are preserved
  • Print: removed message and popup about 3d hidden/shaded view and plot styles
  • Fixed EXTRUDE direction option with NWUCS
  • Fixed ELEVZERO command with REGION objects: the command now filters out REGION objects
  • Fixed display of main window during application startup
  • Fixed ESNAP and ETRACK markers in diffent VPORTS : Restored SNAPALLVIEWS to 0
  • Changed selection windows to display only in active window
  • Quick Property: added a limit to height max to 750 pixel, added scroolbar when exceed to height limit
  • Improved speed of command hint list with great number of results
  • Added OneDrive business path to cloud commands
  • Fixed load of some commands opening drawing with double click on PC with QUADRO video cards
  • PDF2CAD : Fixed crash when attempting to show preview of a protected PDF file
  • Fixed display of DGN underlay
  • Fixed wrong DIST result on layout Viewport
  • Implemented dimension scale depending from layout viewport scale
  • Implemented PURGE of empty text objects
  • Fixed APPLOAD of .NET modules , filename is not requested twice
  • Fixed exception finding hatch boundary
  • Added IMPROVETEXTQLTY variable to HWCONFIG dialog
  • Fixed delete of unused files in temp and in backup folder, changed number of backup files to 2, changed remove of old backup file controlled by BACKUPOPEN variable
  • Added check to avoid crash using layout tab during block editor
  • Fixed explorer preview pane after start
  • Fixed edit of text of annotative dimension
  • Fixed activation/deactivation of POLAR and ORTHO passing from one drawing to another
  • Fixed problem using PUBLISH with our PDF printer, added license activation and set options for each page
  • Fixed open time and anomal memory usage opening drawing with clipped blocks
  • Improved speed of regeneration of TTF text
  • Added IMPROVETEXTQLTY variable to enable or disable change of TEXTQLTY variable opening drawing
  • Fixed DIMRADIUS command when circle stands on z plane different from current elevation
